The drawer-type mold rack can increase mold retrieval efficiency by 60%!
Given the large number of molds, it is necessary to reduce the time spent searching for molds and improve production efficiency；
Despite the large quantity of molds, the available space is limited. Therefore, the goal is to store more molds within the limited space；
There are large-size molds that need to be stored, and the load-bearing capacity and stability of the mold rack are required to be very high.
ORION’s baseline plan was as follows:
The new warehouse building measures 178 ㎡, with a length of 22.5 m and a width of 7.94 m;

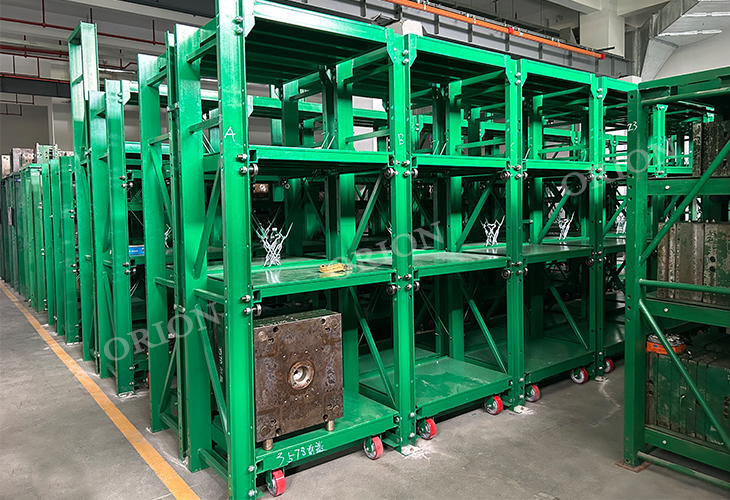

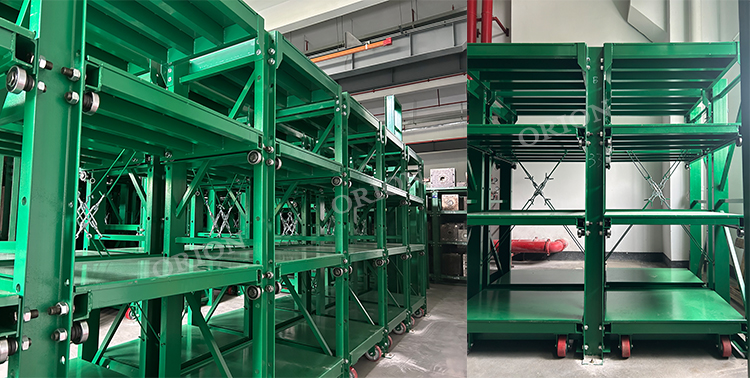

Introduce the pull-out heavy-duty mold shelves, adopting the vertical storage concept, with multi-layer drawer design, and each layer of drawers can bear a load of 3 tons;
The bottom is equipped with a heavy-duty roller system, ensuring smooth pushing and pulling.
| Height of racks: | 2400 mm |
| Width of racks: | 600 mm |
| Length of racks: | 900 mm |
| Number of load levels: | 3+retaining plate |
| Load-capacity: | 3000kgs/drawer |
| Total capacity of storage: | 240 grid |
| Warehouse temperature: | Normal temperature |
The core advantage of the mold rack lies in "reducing costs through maximizing space utilization, lowering costs through enhancing efficiency, and safeguarding assets through safety measures". It is not merely a "storage tool", but rather a "production auxiliary core equipment" that helps enterprises optimize production processes, control costs, and enhance competitiveness.
